特點：
1. 壓力檢測系統升級。
2. 整機模塊化設計,維修保養方便。
3. 雙層三葉輪強迫加料器，加料更均勻穩定。
4. 具備單片剔廢選項。
5. 符合GMP及FDA 21 CFR Part 11要求。
6. 具備遠程控制選項，人機隔離，安全生產。
7. 支持安裝多頭沖，提高產量。
8. 采用智能中央潤滑系統，保障各潤滑點得到充分潤滑。
1. Pressure detection system upgrade.
2. Modular design of the whole machine, Convenient maintenance.
3. Double layered three bladed forced feeder for more uniform and stable feeding.
4. Equipped with a single tablet rejection option.
5. Compliant with GMP and FDA 21 CFR Part 11 requirements.
6. There are remote control options, Man-machine isolation, safe production.
7. Support the installation of multi-head molds to increase production.
8. Intelligent central lubrication system is adopted to ensure that all lubrication points are fully lubricated.

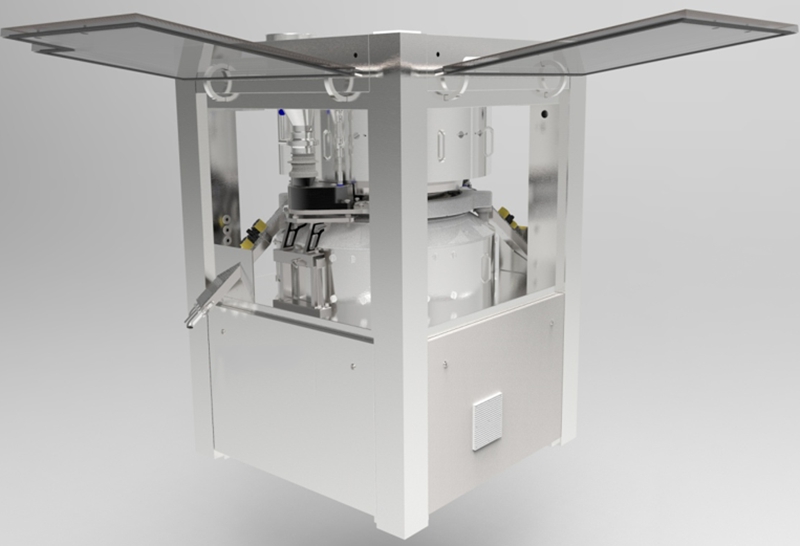

GZP700 |
產品型號Product model | GZP51/2 | GZP63/2 | GZP75/2 | GZP81/2 |
沖頭數目Number of stations | 51 | 63 | 75 | 81 |
模具型號Mould model | I系列D型 | I系列B型 | I系列BB型 | I系列BBS型 |
產量Max Output | tablets/h | 367200 | 453600 | 540000 | 583200 |
主壓Max main pressure | kN | 100 | 100 | 100 | 100* |
預壓Max pre-pressure | kN | 100 | 100 | 100 | 100* |
片徑 Max tablet diameter | mm | 25 | 16 | 13 | 11 |
異形片片徑Max diameter of irregular tablet | mm | 25 | 18 | 16 | 13 |
充填Max filling | mm | 22 | 18 | 18 | 18 |
片厚Max tablet thickness | mm | 8.5 | 8.5 | 8.5 | 8.5 |
轉速范圍Rotation speed range | r/min | 10-60 | 10-60 | 10-60 | 10-60 |
中模直徑Diameter of die | mm | 38.1 | 30.16 | 24 | 22 |
中模高度Middle die height | mm | 23.8 | 22.22 | 22.22 | 22.22 |
沖桿直徑Diameter of punch | mm | 25.35 | 19 | 19 | 19 |
上沖桿長度Upper punch rod length | mm | 133.6 | 133.6 | 133.6 | 133.6 |
下沖桿長度Lower punch rod length | mm | 133.6 | 133.6 | 133.6 | 133.6 |
上沖入模深度Upper punch insertion depth | mm | 0.5-4.5 | 0.5-4.5 | 0.5-4.5 | 0.5-4.5 |
機器特性參數Machine characteristic parameter |
尺寸Dimension | mm | 1350x1350x1850 |
重量Weight | kg | 5200 |
工作電壓Operating voltage | V | 380 |
主電機功率Main motor power | kW | 15 |
壓縮空氣風量Compressed air volume | m3/h | 600 |
壓縮空氣壓力Compressed air pressure | bar | 6 |
環境條件Environmental conditions |
相對空氣濕度（非濃縮）Relative air humidity (non-concentrated) | 5-95% |
壓片室溫度Tablet chamber temperature | 5-35℃ |
操作室溫度Operating room temperature | 0-25℃ |
注：表中產量為理論轉速時的產量，實際生產中由于顆粒狀態、片劑壓力、片劑直徑厚度等諸多因素會影響產量。
*：BBS型模具承受壓力為70KN。
Note: The maximum output in the table is the output at the theoretical maximum rotation speed. In actual production, many factors such as particle state, tablet pressure, tablet diameter and thickness will affect the output.
*The maximum pressure that the BBS mold can withstand is 70kN.
