ZPT27型非標旋轉式壓片機

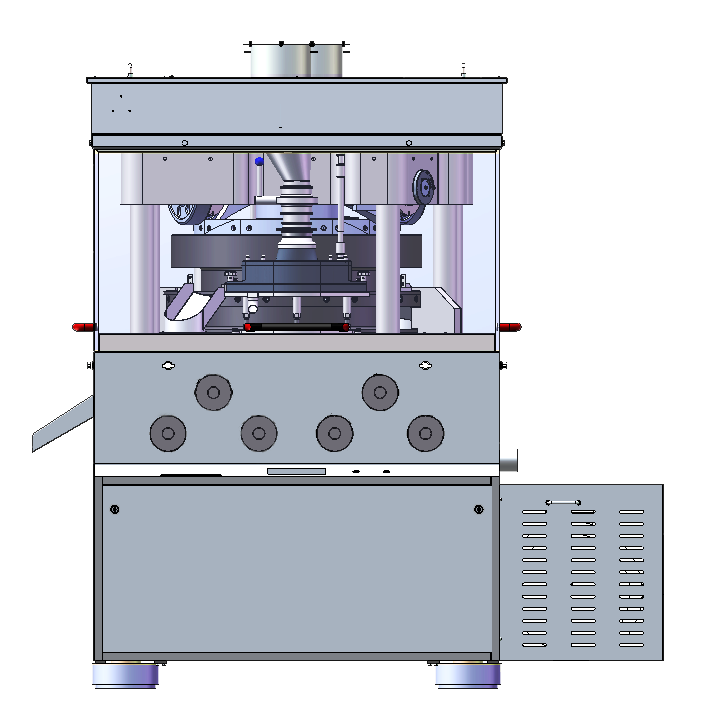

ZPT27 non-standard rotary tablet press
特點:符合GMP要求、具有電子記錄等功能
Comply with GMP requirements、With electronic records and other functions

特點:

1、適用于大規格片劑的壓制,可用于制藥、化工、食品、電子、特種行業等。

2、整機模塊化設計,維修保養方便。

3、雙層三葉輪強迫加料器,加料更均勻穩定。

4、符合GMP要求。

5、采用智能中央潤滑系統,保障各潤滑點得到充分潤滑。

1. Suitable for pressing large size tablets,It can be used in pharmaceutical, chemical, food, electronics, special industries, etc.

2. Modular design of the whole machine,Easy maintenance.

3. Double impeller force-feeder, more uniform and stable feeding.

4. Comply with GMP requirements.

5. Intelligent central lubrication system is used to ensure that each lubrication point is fully lubricated.


ZPT27

沖頭數目Number of stations

27

產量Max Output

tablets/hour

32400

主壓Max main pressure

kN

400

預壓Max pre-pressure

kN

100

片徑Max tablet diameter

mm

Ф60

充填Max filling

mm

60

片厚Max tablet thickness

mm

20

轉速范圍Rotation speed range

r/min

510

沖桿直徑Diameter of punch

mm

Ф62

上沖桿長度Upper punch rod length

mm

227

下沖桿長度Lower punch rod length

mm

240

機器特性參數Machine characteristic parameter

尺寸Dimension

mm

2085×1810×2130

重量Weight

kg

5800

工作電壓Operating voltage

V

380

主電機功率Main motor power

kW

18.5

壓縮空氣風量Compressed air volume

m3/h

600

壓縮空氣壓力Compressed air pressure

bar

6

環境條件Environmental conditions

相對空氣濕度(非濃縮)Relative air humidity (non-concentrated)

5-95%

壓片室溫度Tablet chamber temperature

5-35℃

操作室溫度Operating room temperature

0-25℃

注:表中最大產量為理論最高轉速時的產量,實際生產中由于顆粒狀態、片劑壓力、片劑直徑厚度等諸多因素會影響產量。

Note: The maximum output in the table is the output at the theoretical maximum rotation speed. In actual production, many factors such as particle state, tablet pressure, tablet diameter and thickness will affect the output.
