特點：
1、本系列機型為小片專用旋轉式壓片機，片徑3~5mm，具有防爆選項。
2、遠程控制，人機隔離，安全生產。充填、片厚調節裝置由伺服電機驅動蝸輪蝸桿調節，增加了調節的準確性。
3、具備壓力檢測選項。檢測主壓力。
4、具備單片剔廢選項。
5、觸摸輸入，操作簡單可靠且故障自動報警停機，并可以查詢。
6、智能集中潤滑系統，可根據具體情況在智能集中潤滑系統上設定加潤滑油。

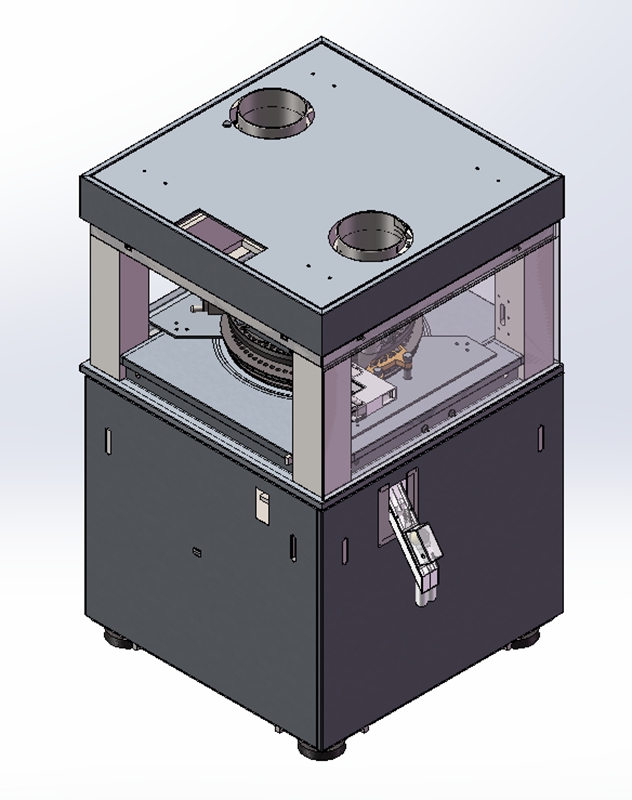

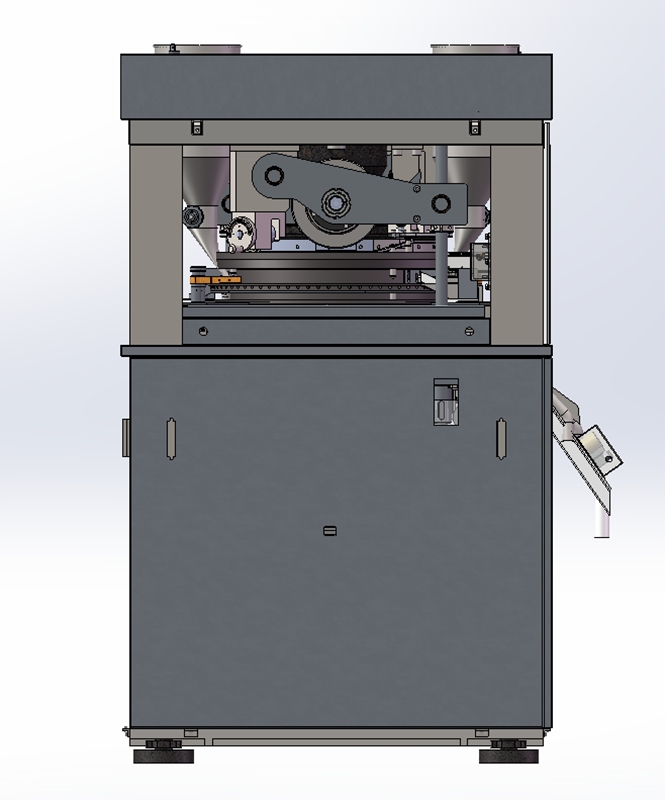

1. This series of models is a special rotary tablet press for small pieces.the tablet diameter is 3~5mm,with explosion-proof option.
2. Remote control, man-machine isolation and safe production. The filling and thickness adjustment device is adjusted by the worm gear driven by servo motor, which increases the accuracy of adjustment.
3. With pressure detection options. Check the main pressure.
4. With single tablet waste removal option.
5. Touch the input, the operation is simple and reliable, and the fault automatically alarms and stops, and can be queried.
6. Intelligent centralized lubrication system, according to the specific situation in the intelligent centralized lubrication system set lubricating oil.
型號Product model | ZPFB75 |
沖模數Number of stations | 75 |
產量 Max Output | tablets/hour | 270000 |
壓片直徑 Max tablet diameter | mm | 3～5 |
充填深度 Max filling depth | mm | 8 |
片厚 Max tablet thickness | mm | 0.6-2 |
主壓 Max main pressure | kN | 120 |
預壓 Max pre-pressure | kN | 20 |
主電機功率 Main motor power | kW | 5.5 |
外形尺寸（長mm×寬）Dimension(Length× width) | mm | 1150x1150 |
機器高度 Height | mm | 1931 |
機器重量 Weight | kg | 約3875 |
注：表中產量為理論轉速時的產量，實際生產中由于顆粒狀態、片劑壓力、片劑直徑厚度等諸多因素會影響產量。
Note: The maximum output in the table is the output at the theoretical maximum rotation speed. In actual production, many factors such as particle state, tablet pressure, tablet diameter and thickness will affect the output.
