特點：
1、本系列機型為非標大壓力大充填的旋轉式壓片機。具有防爆選項。
2、遠程控制，人機隔離，安全生產。充填、片厚調節裝置由伺服電機驅動蝸輪蝸桿來調節充填量，增加了調節的準確性。
3、具備壓力檢測選項。檢測主壓力。
4、具備批量剔廢、單片剔廢選項。
5、智能觸摸屏控制，操作簡單可靠且故障自動報警停機，并可以查詢。
6、防爆電氣控制柜獨立在機器的外部。遠離設備，杜絕危險。

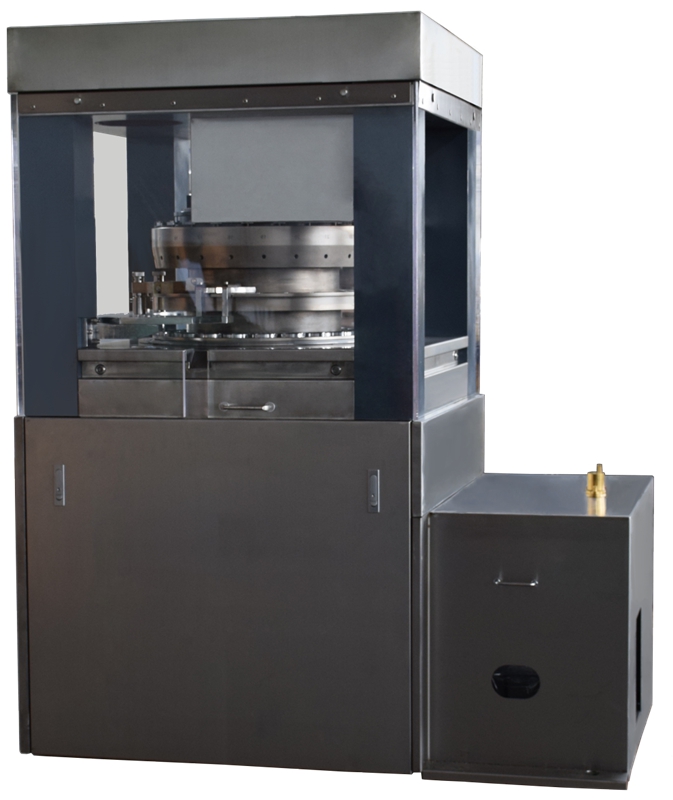

1. This series of models are non-standard rotary tablet press with large . With explosion-proof option.
2. Remote control, man-machine isolation, safe production.
Filling and film thickness adjusting device is driven by servo motor to adjust the filling amount, which increases the accuracy of adjustment.
3. with pressure detection options. Check the main pressure.
4. With batch reject and single reject options.
5. Intelligent touch screen control, simple and reliable operation, automatic alarm and shutdown of faults, and can be queried.
6. The explosion-proof electrical control cabinet is independent outside the machine. Stay away from the equipment and put an end to danger.
型號Product model | ZPFBYH26 |
沖模數Number of stations | 26 |
產量（tablets/hour）Max Output | 15600 |
壓片直徑）Max tablet diameter | 50 |
充填深度Max filling depth | 60 |
片厚Max tablet thickness | 8-22.5 |
主壓(kN)Max main pressure | 300 |
預壓力（kN）Max pre-pressure | 100 |
主電機功率（kW）Main motor power | 18.5 |
外形尺寸（長mm×寬mm）Dimension(Length mm× width mm) | 1699x1166 |
機器高度Height | 2182 |
機器重量Weight | 約5300 |
注：表中最大產量為理論最高轉速時的產量，實際生產中由于顆粒狀態、片劑壓力、片劑直徑厚度等諸多因素會影響產量。
Note: The maximum output in the table is the output at the theoretical maximum rotation speed. In actual production, many factors such as particle state, tablet pressure, tablet diameter and thickness will affect the output.
